Keyboard overmolding is an innovative manufacturing technique that merges various colored rubber components, differing hardness silicone parts, or a combination of distinct rubber materials into a single, cohesive final product. This advanced process employs methods such as compression molding and liquid silicone injection molding to achieve durable and aesthetically pleasing keyboard designs. Notably, keyboard overmolding is not limited to rubber materials; it also effectively bonds rubber to metal or plastic substrates, utilizing primer adhesives to ensure a strong and reliable adhesion between different materials.
Key Benefits of Keyboard Overmolding

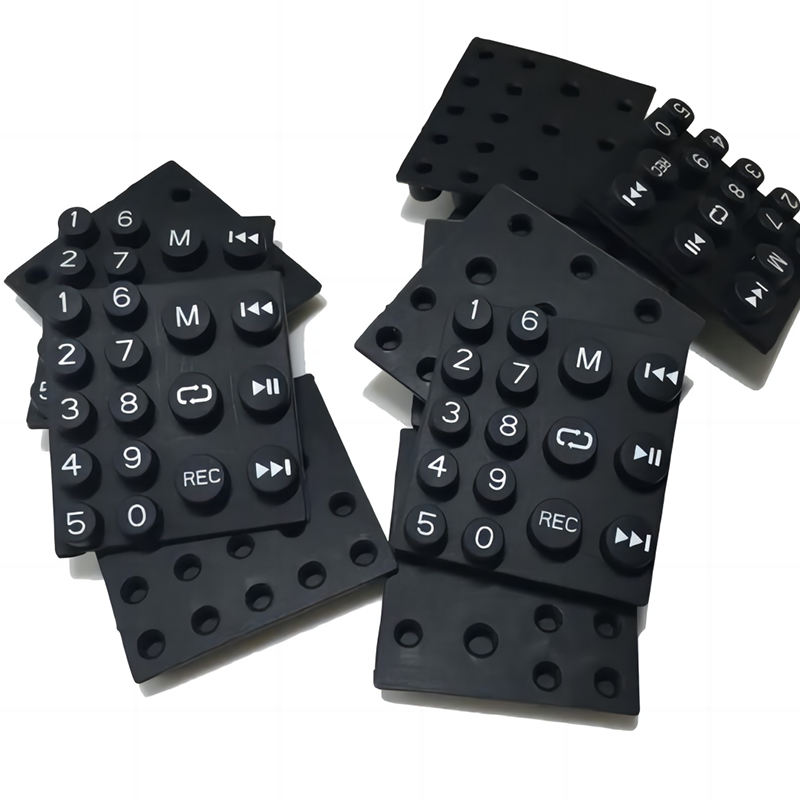

One of the primary advantages of keyboard overmolding is its ability to enhance both the functionality and appearance of the final product. The resulting rubber keypads are not only visually appealing due to their vibrant colors but also designed to meet specific tactile requirements. The use of dual-hardness keys provides superior feedback, allowing for customized actuation force that can cater to various user preferences and operational needs.
Additionally, the manufacturing process ensures that the parting lines between different colors are clear and precise, eliminating any concerns about color bleeding. This level of detail contributes to the overall aesthetic quality and functionality of the keyboards, making them more attractive and user-friendly.
Types of Keyboard Overmolding Techniques
Rubber on Rubber Overmolding

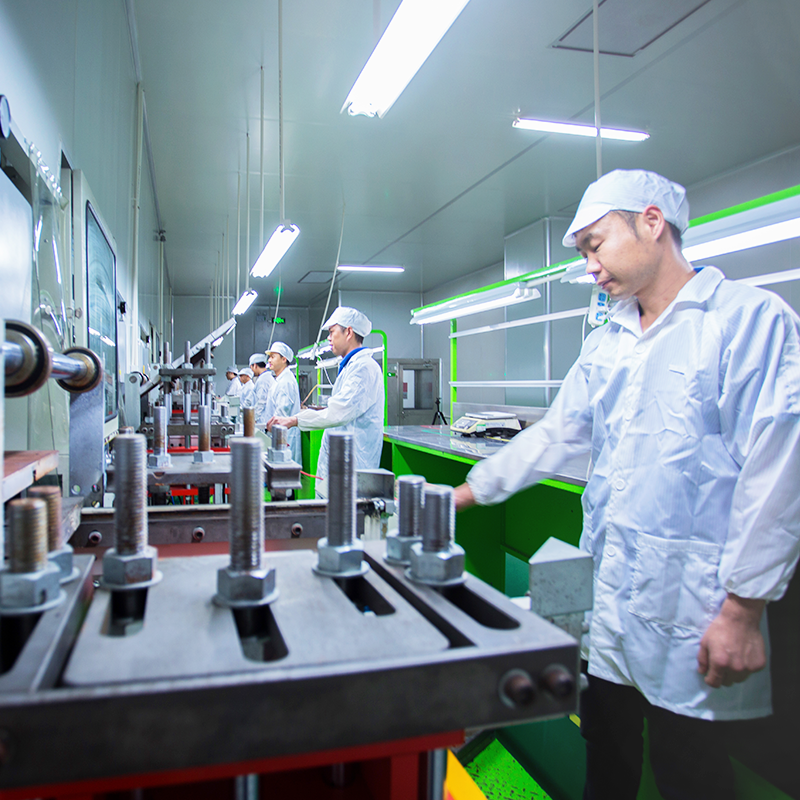

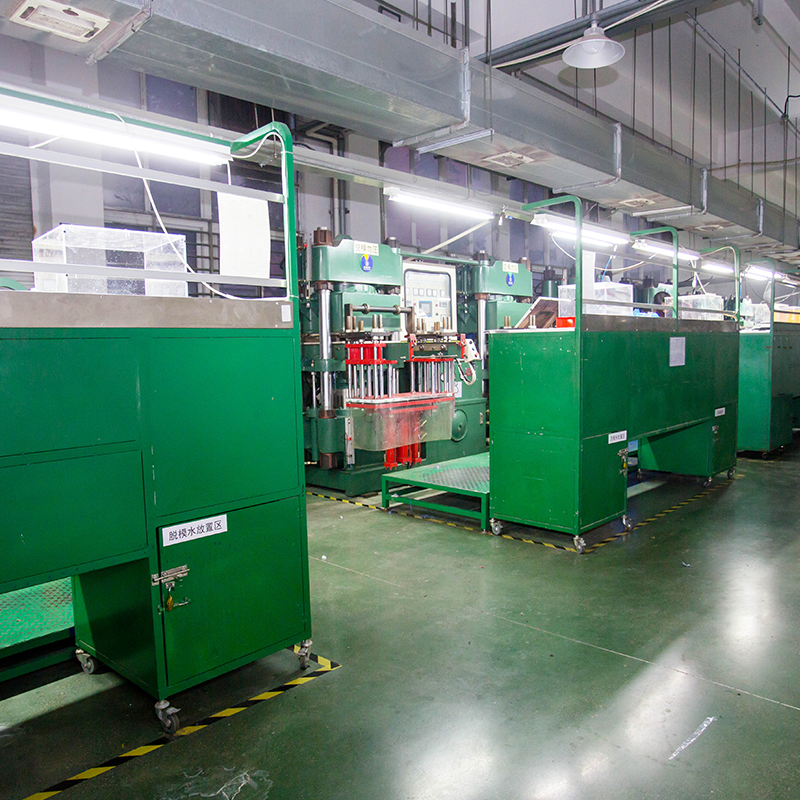

This method involves the use of two separate compression molds. One mold is specifically designed for creating colorful or dual-hardness rubber components, while the second mold combines these individual parts into a single, cohesive product. The end result is often seen in dual-colored keys or keyboards with varying hardness levels, enhancing both the appearance and usability of the final product.
Rubber and Plastic Overmolding
In the rubber and plastic overmolding approach, plastic components are molded first before being combined with rubber parts. This integration is achieved through techniques such as liquid silicone injection molding. Given that most plastics cannot endure high temperatures, low-temperature curing methods are employed to prevent deformation of the plastic parts during the overmolding process. A common application of this technique is seen in liquid silicone baby bottles that feature a durable PPSU ring.
Rubber and Metal Overmolding
This type, also referred to as insert molding, integrates metal components into the rubber structure. Unlike plastic, metal parts can withstand higher curing temperatures, removing the risk of melting during the overmolding process. To ensure a robust bond between rubber and metal, metal components are typically primed before being inserted into the rubber mold cavities. This ensures a strong connection and enhances the durability of the final product.
Detailed Steps in the Keyboard Overmolding Process
The keyboard overmolding process is considerably more intricate compared to standard rubber keypad production. The complexity arises from the need for clear parting lines between colors and the requirement for precise positioning of components.
- Independent Molding of Colorful Keys: Different shapes and sizes of silicone keys are compression molded separately. These keys can be created in various Pantone or RAL colors and may have different durometer levels to achieve the desired tactile feedback.
- Positioning Keys: Once the individual keys are ready, they are carefully placed into corresponding key position tools, which facilitate accurate alignment within the mold.
- Incorporating Carbon Pills: For keyboards that require conductivity, carbon pills are positioned in the mold cavities prior to the placement of the rubber keys. This step is critical for ensuring proper functionality in electronic applications.
- Securing Keys: The multi-color key position tools are used to firmly secure all rubber keys into their designated cavities within the rubber keyboard mold. This precision is essential for achieving the desired final appearance and functionality.
- Molding Setup: After the keys are positioned, rubber raw material is introduced into the keyboard mold. The mold is then closed and clamped, initiating the curing process.
- Curing Process: The overmolding temperature for rubber buttons typically hovers around 170°C. The curing time and temperature must be tailored to the thickness and geometry of the keyboard. For thicker designs, extended curing times are required to ensure complete material integrity and avoid issues with uncured sections.
- Finalizing the Product: Once the rubber keyboard has fully cured, it is removed from the mold. The process can then be repeated for additional production runs.
Advantages of Keyboard Overmolding
The advantages of keyboard overmolding are manifold. Key benefits include:
– Enhanced Flexibility: Overmolding adds flexibility to rigid components, improving overall usability and comfort for end-users.
– Aesthetic Appeal: The process allows for the creation of visually striking rubber parts that can be tailored to specific design requirements.
– Cost Efficiency: By reducing assembly time and material costs, keyboard overmolding contributes to more economical production processes.
– Stronger Bonds: The combination of overmolding provides a stronger bond compared to traditional adhesive methods, resulting in greater durability and longevity for the final product.
Common Challenges in Keyboard Overmolding
Despite its numerous benefits, keyboard overmolding does come with its own set of challenges. One of the most significant issues arises when the material used for the keys is too soft. Soft silicone keys may struggle to adhere securely in their designated cavities, leading to complications such as color bleeding during the curing process. Additionally, careful consideration must be given to the design of parting lines to minimize webbing between keys while maintaining the structural integrity of the product.
Silkeypad’s Competitive Advantages
At Silkeypad, we pride ourselves on our extensive expertise in keyboard overmolding, enabling us to deliver high-quality, precisely engineered rubber keypads tailored to our clients’ specific requirements. Our advanced manufacturing processes, commitment to using premium materials, and focus on continuous innovation position us as a leader in the industry. We ensure that our products not only meet but exceed customer expectations, making us a preferred partner for businesses seeking reliable, aesthetically pleasing keyboard solutions.
By integrating cutting-edge technology and skilled craftsmanship, Silkeypad stands out as a benchmark for quality and efficiency in keyboard overmolding. Whether for consumer electronics, medical devices, or other specialized applications, we provide tailored solutions that enhance functionality and user experience.
In conclusion, the keyboard overmolding process is a sophisticated method that combines various materials to create high-performance, durable products. With its unique benefits and the expertise offered by Silkeypad, this process represents a significant advancement in the manufacturing of rubber keypads, catering to a wide range of applications and customer needs.
