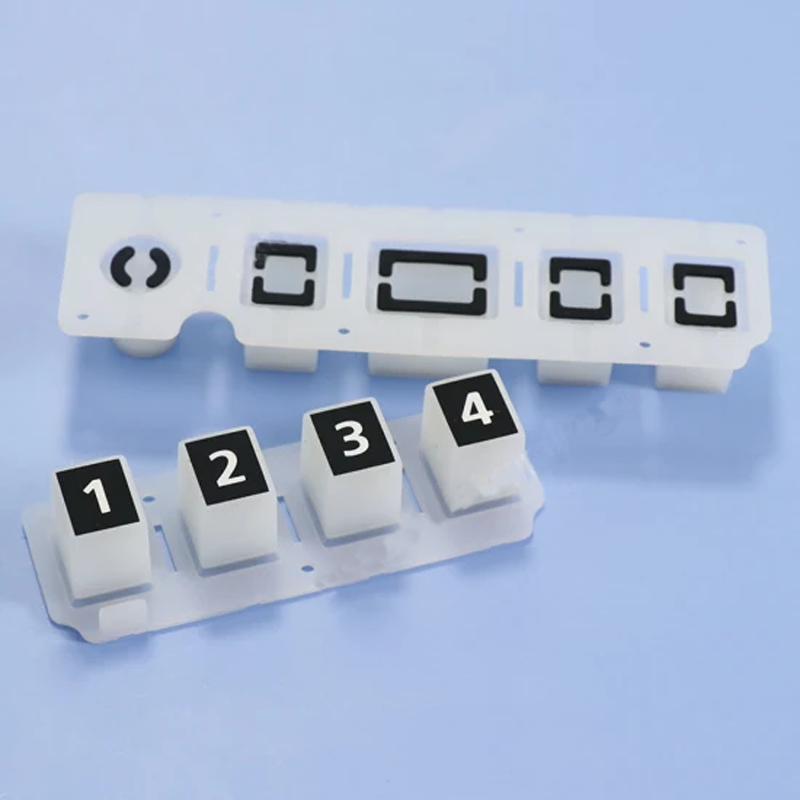

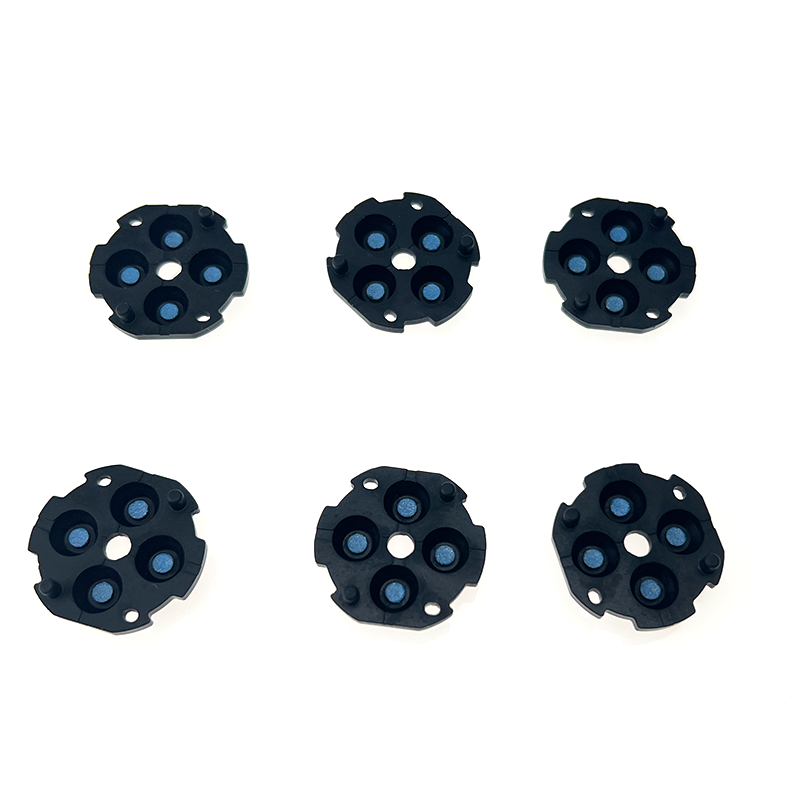

Conductive paint is a specialized composite material characterized by the even dispersion of conductive particles within a liquid solvent. This innovative material is typically composed of various conductive powders, such as graphite, silver, gold, or copper, mixed with a liquid resin. Upon drying and solidifying, the conductive particles within the paint are brought closer together, allowing free electrons to move in response to an external electric field, thus creating an electric current. Conductive paint finds extensive applications across several industries, including integrated circuits, printed circuit boards (PCBs), radio-frequency identification (RFID) systems, and silicone rubber keyboards.

Understanding Conductive Paint keyboards

Conductive paint buttons represent a distinct category of conductive rubber keyboards. In keyboard production, there are several other prevalent conduction methods, including carbon pills, metal domes, and gold pills. The manufacturing processes for conductive ink keyboards differ significantly from those utilizing carbon pills. Typically, carbon pills are integrated into rubber keyboards during compression molding, while conductive paint is printed onto the keyboard’s surface after the compression molding process. This latter method requires precise tooling for both the keyboard positioning and the printing.

Advantages of Conductive Ink Printing in keyboards

1. Cost-Effectiveness and Efficiency

Conductive paint keyboards offer notable economic advantages compared to traditional carbon pill keyboards. The technology for conductive ink printing has matured considerably, allowing for the creation of conduction areas in various shapes and sizes. In contrast, carbon pills are generally limited to standard configurations, such as round or rectangular shapes. Customizing carbon pills to meet specific design requirements can incur significant costs. Furthermore, since carbon pills must be placed within the rubber keyboard during the compression molding process, the overall molding efficiency is typically lower than that achieved with conductive ink printing.

2. Flexibility in Reworking

Another significant advantage of conductive paint keyboards is the ease with which they can be reworked. If a keyboard does not meet quality standards, the conductive ink printed on it can be adjusted by changing the printing tools or through manual adjustments. This flexibility is not feasible with carbon pill or gold pill silicone keyboards, where any defects often require complete replacement rather than modification.

Disadvantages of Conductive Paint keyboards

1. Higher Resistance Levels

One of the main drawbacks of conductive paint keyboards is their higher resistance compared to carbon pills, metal domes, and gold pill keyboards. The resistance of conductive paint keyboards typically ranges from 150 to 200 ohms. To mitigate this issue, it is essential to select high-quality conductive paint containing metal powders, ensure precision in printing, and potentially thicken the printing layer. However, even with these measures, conductive paint keyboards may not match the low resistance levels of alternative conduction methods.

2. Shorter Lifespan

Durability is another area where conductive paint keyboards can fall short. The layers of paint and ink are more susceptible to wear and degradation over time, particularly with prolonged use. As the paint layer wears away, the resistance tends to increase, which can affect the keyboard’s performance. This gradual deterioration may necessitate more frequent replacements compared to keyboards utilizing more durable conduction methods.

Silkeypad’s Advantage in Conductive Paint keyboards

At Silkeypad, we pride ourselves on our expertise in the development and production of high-quality conductive paint keyboards. Our approach combines advanced technology with a commitment to quality, enabling us to produce keyboards that not only meet but often exceed industry standards.

1. High-Quality Materials

We utilize premium conductive paints that incorporate high percentages of metal powders. This selection ensures lower resistance levels and enhances the overall conductivity of our keyboards. Our focus on quality materials translates into superior performance and reliability for our clients.

2. Advanced Printing Techniques

Silkeypad employs cutting-edge printing technologies that allow for precision and consistency in every keyboard we produce. Our printing process is designed to create finely detailed conduction areas while minimizing waste and maximizing efficiency. This attention to detail ensures that our conductive ink keyboards maintain their performance over time.

3. Customization and Flexibility

We understand that our clients often require unique solutions tailored to their specific needs. Our conductive paint keyboards can be easily customized in terms of shape, size, and design, providing our customers with the flexibility to create products that align perfectly with their requirements. Moreover, our capacity for reworking defective keyboards sets us apart from competitors, providing our clients with added assurance and value.

4. Durability and Performance Testing

Our rigorous testing protocols ensure that every keyboard meets our high standards for durability and performance. We conduct extensive evaluations to assess the longevity of our conductive paint keyboards, addressing any potential issues before products reach our clients. This commitment to quality control helps us deliver reliable solutions that our customers can depend on.

Conclusion

In summary, conductive paint plays a crucial role in the production of silicone rubber keyboards, offering a range of advantages, including cost-effectiveness, flexibility, and design versatility. However, challenges such as higher resistance levels and shorter lifespans must be acknowledged. At Silkeypad, we leverage our expertise and advanced technologies to produce conductive paint keyboards that strike an optimal balance between performance and durability. By focusing on quality materials, precision manufacturing, and customer-centric solutions, we aim to lead the industry in delivering high-performing keyboards tailored to the diverse needs of our clients.

At Silkeypad, our silicone keyboards are engineered for a wide array of devices, each presenting distinct requirements such as tactile feedback, wear resistance, actuation force, lifespan, and compression set. While silicone itself has inherent waterproof characteristics, creating a truly waterproof silicone keyboard demands meticulous design that integrates seamlessly with the device’s plastic assembly housing. This blog delves into the essential aspects of designing waterproof silicone keyboards, offering insights and best practices drawn from our extensive experience as an industry leader.

The Significance of Waterproof Design

Electronic devices are inherently susceptible to damage from liquid exposure, whether from water, oil, or other substances. If moisture breaches the internal components, particularly the circuit board, it can result in severe malfunctions, leading to costly repairs or, in some cases, complete replacements. Therefore, implementing a robust waterproof design for silicone rubber keyboards is crucial not only for optimal functionality but also for enhancing longevity and reliability.

Key Design Considerations for Waterproof Silicone Keyboards

To develop a waterproof silicone keyboard, several key design strategies must be employed:

1. Eliminating Positioning Holes: Traditional designs often incorporate holes for the positioning or fixing of silicone buttons. However, these holes can act as conduits for water, jeopardizing the integrity of the circuit board. Our design philosophy advocates for the removal of such holes in waterproof keyboards, thereby providing a smooth, uninterrupted surface that minimizes the risk of liquid infiltration.

2. Innovative Edge Structure: To boost the waterproof capabilities of silicone keyboards, we design an elevated waterproof wall that encircles the keyboard. This structural feature serves as a barrier, preventing water from reaching sensitive electronic components. Additionally, we incorporate a fixed positioning groove, typically in a semicircular configuration, that aligns with the chassis and circuit board while maintaining a safe distance from critical areas. This thoughtful design ensures that even if water droplets come into contact with the keyboard, they are redirected away from the internal components.

3. Effective Sealing with Resin or Adhesive: While gaps may exist between the silicone keyboard and the assembly housing, applying a resin or adhesive can significantly enhance the sealing effect. Although this method improves waterproofing, it necessitates careful application to avoid excess material that could detract from the keyboard’s aesthetic. Thus, we advocate designing the keyboard to inherently include waterproofing within its structure.

Case Study

Recently, we collaborated with a well-known technology company that sought a custom rubber keyboard for an outdoor smart speaker. The client’s requirements specified a fully functional keyboard that needed to be waterproof, resistant to UV light, extreme temperatures, and mechanical wear.

Custom Silicone Keyboard Specifications

The specifications outlined by our client included:

– A translucent silicone base capable of withstanding UV exposure.
– Brightly colored key tops for enhanced visibility.
– Integrated LED indicators to provide user feedback.
– A splash-proof design suitable for outdoor environments.

Challenges Encountered

The primary challenge lay in ensuring the keyboard’s waterproof integrity while maintaining its visual appeal. Upon evaluating the initial design, our engineers identified several issues, including insufficient structural support beneath the buttons and the absence of waterproof grooves. This design flaw posed a significant risk; any pressure applied to the buttons could misalign the keyboard, creating gaps through which water could enter.

Engineering Solutions

To address these concerns, our engineering team proposed a comprehensive redesign of the silicone keyboard. We transformed it into a fully sealed structure, effectively encasing the electronic components. The new design featured reinforced walls and strategically positioned waterproof grooves, ensuring both aesthetic appeal and a reliable waterproof seal.

Final Manufacturing Process

To meet the client’s aesthetic and functional specifications, the final manufacturing process involved several key steps:

1. UV-Resistant Translucent Silicone Base: This high-performance material offers protection against UV damage while providing a visually appealing finish.

2. Color Application: Bright colors were applied to the button tops, improving visibility and usability.

3. LED Integration: Carefully designed cutouts were made for the LED indicators to provide user feedback without compromising the keyboard’s waterproof capabilities.

4. Laser Cutting and Etching: Precise laser cutting was used to create openings for LEDs while etching symbols and legends for clarity.

5. Polyurethane Coating Application: A final spray of polyurethane provided additional protection against environmental factors.

Production Considerations

To ensure the production of a high-quality product that met all specifications, we developed a specialized positioning tool for the spray application. This tool allowed for uniform application of color around the edges of the rubber keyboard. However, implementing this method added extra steps in the production process, resulting in increased labor costs and longer lead times.

Silkeypad’s Competitive Advantages

As a leading manufacturer of waterproof silicone keyboards, Silkeypad takes pride in delivering customized solutions that meet our clients’ unique needs. Our advantages include:

– Material Science Expertise: We leverage our extensive knowledge of silicone materials to optimize performance and durability.

– Innovative Design Solutions: Our engineering team utilizes cutting-edge design practices to ensure our products not only meet but exceed industry standards.

– Quality Commitment: We adhere to rigorous quality control measures throughout the manufacturing process, ensuring each keyboard is reliable and functional.

– Customization Flexibility: We offer a wide range of customization options to fulfill specific client requirements, whether for aesthetic appeal or functional performance.

Conclusion

Designing waterproof silicone keyboards is a multifaceted endeavor that requires careful consideration of material properties, structural integrity, and environmental exposure. By integrating innovative design strategies and employing advanced manufacturing techniques, Silkeypad ensures that our silicone keyboards meet and often exceed client expectations for performance and reliability. Whether for outdoor applications or complex electronic devices, our commitment to quality and innovation positions us as the preferred partner for your silicone keyboard solutions. If you’re seeking custom solutions that deliver exceptional performance and durability, contact us today to explore how we can assist you!

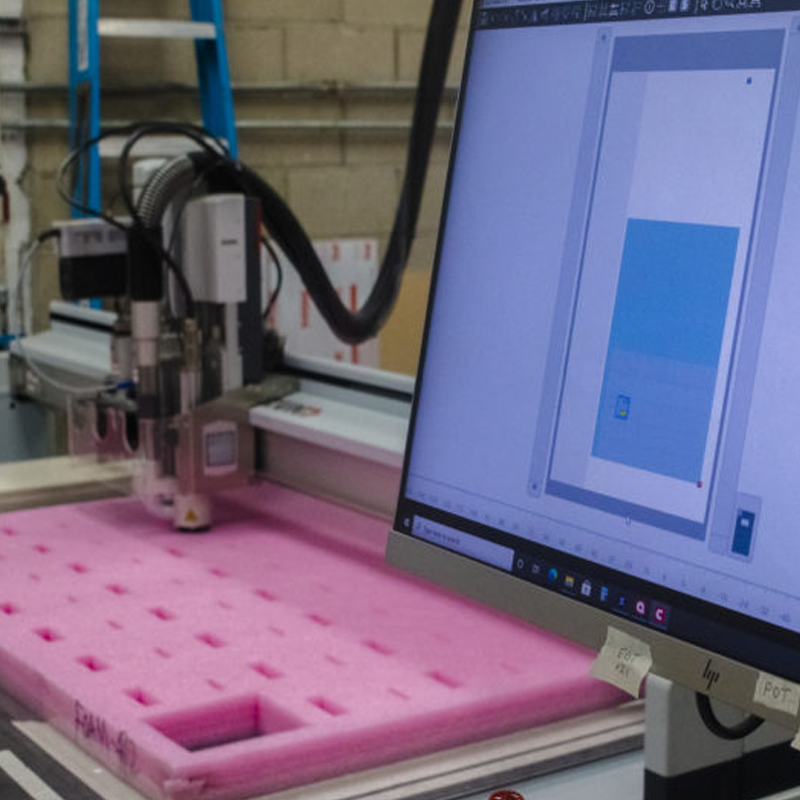

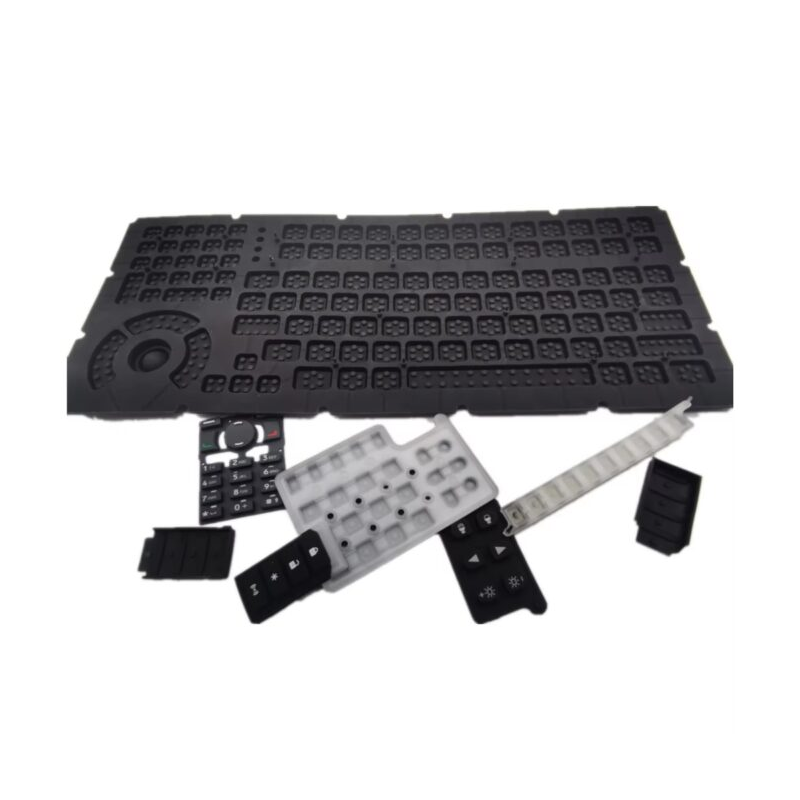

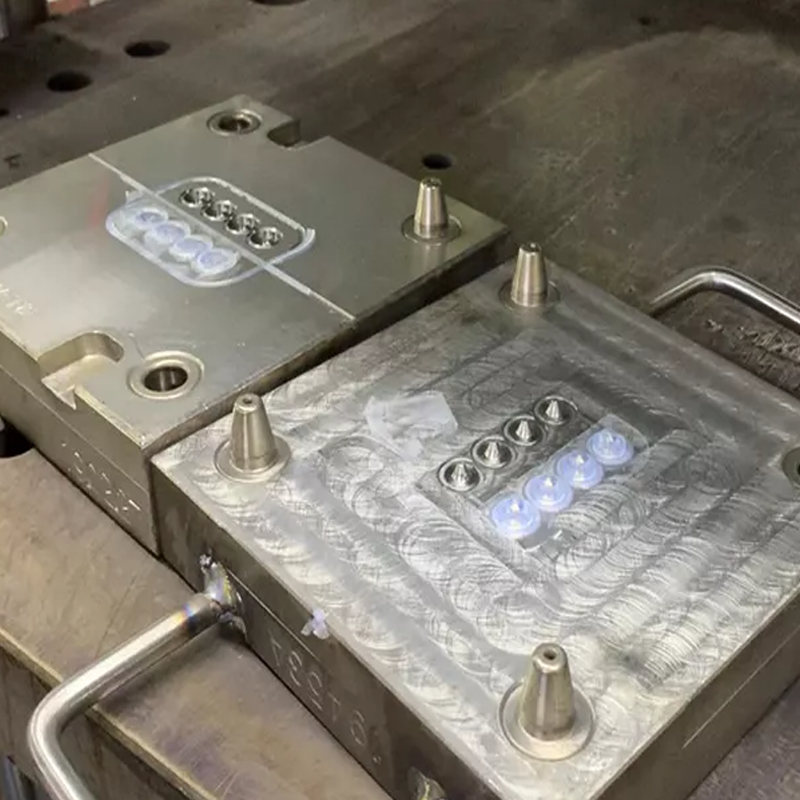

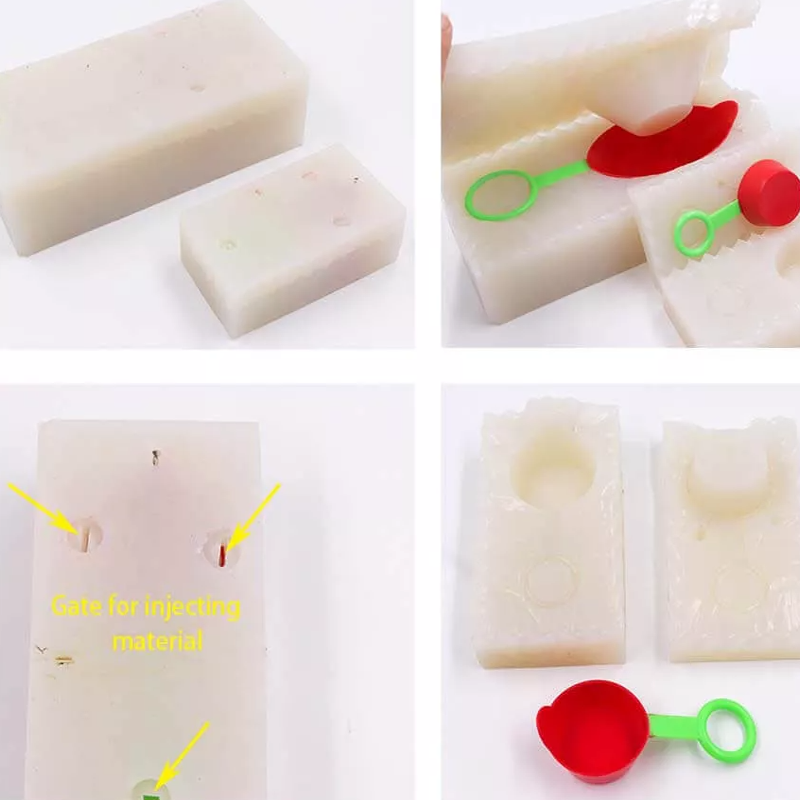

In the realm of product development, particularly when designing silicone rubber keyboards, investing time in the prototyping phase can significantly influence the success of your final product. Silicone rubber keyboards are widely utilized across various sectors, including consumer electronics, automotive applications, medical devices, and industrial machinery. Known for their durability, flexibility, and resistance to environmental challenges, these keyboards offer numerous benefits. However, to ensure that your product aligns with specific requirements and user expectations, prototyping becomes an indispensable step in the design process. In this article, we will delve into the myriad advantages of prototyping silicone rubber keyboards.

Design Validation

One of the foremost benefits of prototyping is the opportunity to validate your design early in the development cycle. By creating a physical prototype, you can assess the look, feel, and functionality of the keyboard. This step is crucial for verifying that the design adheres to specifications regarding size, shape, and tactile feedback. Engaging in this validation process enables you to identify and rectify potential design flaws before they escalate into costly complications during manufacturing. By catching these issues early, you not only save resources but also streamline the overall production timeline.

User Experience Testing

User experience plays a pivotal role in determining the success of your product. Silicone rubber keyboards are often integrated into devices that require frequent user interaction, such as remote controls, medical instruments, and industrial equipment. Prototyping offers a platform to gather valuable feedback from potential users or stakeholders, allowing you to refine the keyboard’s design based on real-world interactions. During this phase, you can evaluate critical factors such as button layout, actuation force, and tactile response. This iterative feedback loop is essential for ensuring that the keyboard meets or exceeds user expectations, ultimately leading to a more successful product.

Material Selection

The customization of silicone rubber keyboards extends beyond mere aesthetics; it encompasses critical material properties such as hardness, durometer, and color. Prototyping allows you to experiment with various silicone formulations, enabling you to identify the optimal material for your specific application. Testing different materials is vital for finding the right balance of durability, tactile feedback, and environmental resistance, including moisture and temperature fluctuations. By understanding how different materials perform in real-world scenarios, you can make informed decisions that enhance the overall quality and longevity of your product.

Functionality Testing

Prototyping also facilitates rigorous functionality testing of the keyboard. This includes evaluating electrical properties, ensuring that the conductive traces and contacts operate as intended. Testing the functionality of the keyboard is crucial for verifying that buttons register keypresses reliably and consistently, which reduces the risk of defects in the final product. By conducting these tests during the prototyping phase, you can identify and address potential issues early on, which not only enhances product reliability but also builds consumer trust.

Rapid Iteration

One of the standout advantages of prototyping is the ability to iterate quickly. If design issues arise or if feedback suggests areas for improvement, you can implement changes to the prototype without incurring significant costs or time delays. This agile approach allows you to refine your design continually until it meets the desired performance and user experience standards. Rapid iteration is especially beneficial in today’s fast-paced market, where responsiveness can determine a product’s success.

Cost Savings

While there is an initial cost associated with prototyping, this investment often leads to substantial long-term savings. By identifying and resolving design issues early in the development process, you can avoid expensive modifications and production delays that may arise later. Moreover, the prototyping phase allows you to optimize the manufacturing process for efficiency, potentially lowering production costs. This proactive approach ultimately contributes to a more streamlined workflow, which can be financially beneficial for your business.

Reduced Time-to-Market

Another significant benefit of prototyping is its impact on the overall product development timeline. By expediting the design and validation phases, prototyping accelerates your journey to final production. Early identification and resolution of design flaws or user experience issues allow you to progress more swiftly toward market readiness. In competitive industries, this reduction in time-to-market can provide a substantial advantage, enabling you to introduce innovative products ahead of your competitors.

Conclusion

Prototyping silicone rubber keyboards is a vital step in the product development process that offers numerous benefits. From design validation and user experience testing to material selection and functionality assessment, each phase of prototyping plays a critical role in ensuring your final product meets the highest standards of quality and performance. By investing in prototyping, you can create a product that not only fulfills functional requirements but also delights users, paving the way for a successful market launch.

Our Capabilities

At Silkeyboard, we provide comprehensive engineering support for early design considerations. Our rapid prototyping services deliver parts within as little as two weeks, enabling you to move quickly through the development process. We invite you to reach out to our experienced team with any questions or inquiries about your silicone rubber products. Whether you prefer to email or call us, we are here to assist you in bringing your innovative ideas to life.



In the fast-evolving world of technology, silicone keyboards have gained significant popularity due to their versatility, durability, and unique tactile feedback. A crucial aspect of their performance and appearance is the surface coating applied during the manufacturing process. This blog explores various surface coating options for silicone keyboards, discussing their characteristics, benefits, and ideal applications.

1. Color Coating

Color coating is one of the most common surface finishes applied to silicone keyboards. This technique involves applying a layer of color directly to the silicone surface, allowing manufacturers to achieve vibrant hues and customized designs. The advantages of color coating include:

– Aesthetic Appeal: Color coatings can significantly enhance the visual attractiveness of silicone keyboards, allowing for branding and personalization options that align with user preferences.

– Durability: High-quality color coatings are resistant to fading, ensuring that the keyboard maintains its aesthetic appeal over time.

– Easy Maintenance: Color-coated surfaces are typically easier to clean, as the smooth finish helps prevent dirt and grime buildup.

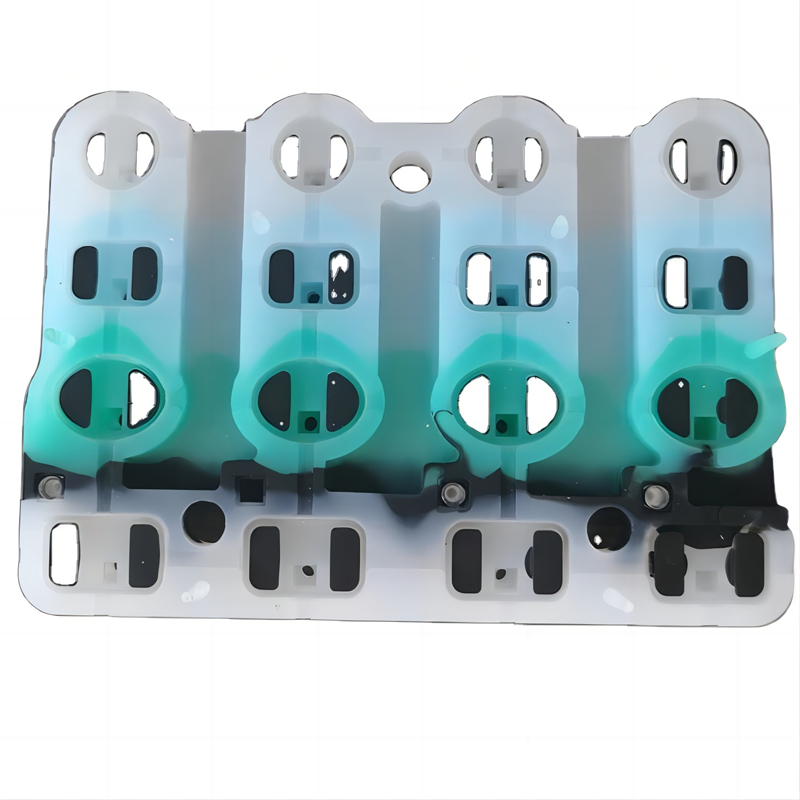

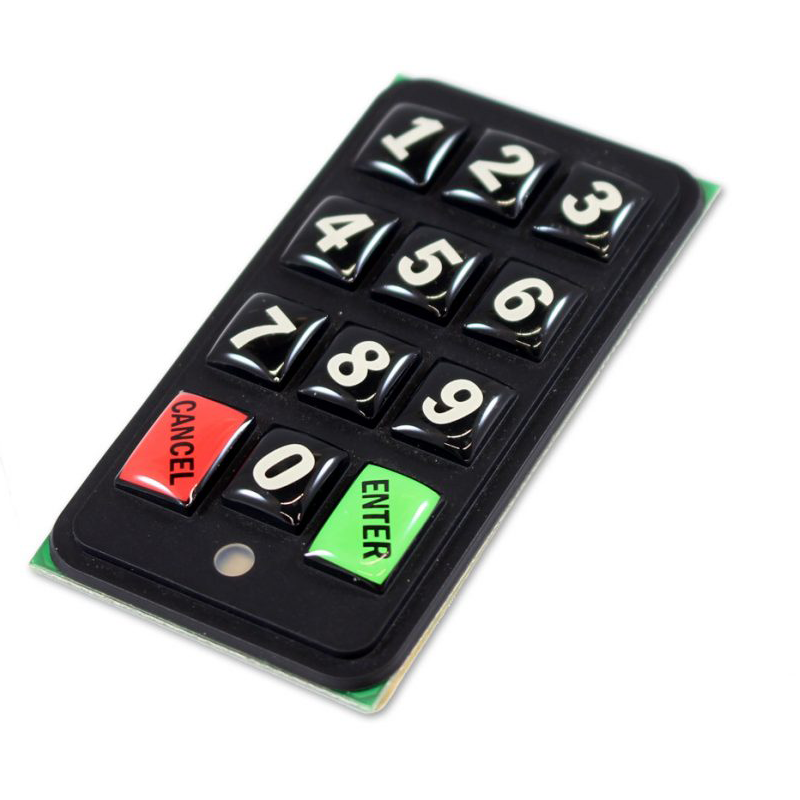

2. Epoxy Coating

Epoxy coating is another popular surface treatment for silicone keyboards, offering a robust protective layer that enhances durability. This process involves applying a resin-based coating that cures to form a hard, glossy finish. The benefits of epoxy coating include:

– Enhanced Protection: Epoxy coatings are highly resistant to chemicals, abrasion, and impact, providing excellent protection against everyday wear and tear.

– Improved Performance: This coating can enhance the tactile feel of the keys, making them more responsive and comfortable to use.

– Customizable Finish: Epoxy coatings can be tailored to provide various finishes, from glossy to matte, allowing for further customization options.

3. Laser Etching

Laser etching is a precise and advanced method of adding designs and lettering to silicone keyboards. This process utilizes a high-powered laser to engrave patterns or text directly onto the surface. The advantages of laser etching include:

– Precision: Laser etching allows for intricate designs and detailed logos, ensuring high-quality results that stand the test of time.

– Permanent Markings: Unlike printed designs, laser-etched markings are permanent and resistant to wear, ensuring that the information remains legible throughout the keyboard’s lifespan.

– No Additional Coating Needed: Since the etching process is integrated into the keyboard’s surface, there is no need for additional coatings, simplifying manufacturing processes.

4. Matte Smooth Finish

A matte smooth finish provides a unique tactile experience, making it a favored option for silicone keyboards. This finish is achieved through specialized techniques that create a soft, non-glossy surface. The benefits of a matte smooth finish include:

– Fingerprint Resistance: Matte surfaces are less prone to showing fingerprints and smudges, maintaining a clean appearance over time.

– Comfortable Feel: The smooth texture enhances the overall typing experience, offering a softer touch that many users prefer.

– Reduced Glare: Matte finishes reduce reflections, making the keyboard more comfortable to use under various lighting conditions.

5. PU Coating (Polyurethane Coating)

Polyurethane (PU) coatings provide a flexible and protective layer that enhances the durability of silicone keyboards. This coating is known for its resilience and versatility, making it an ideal choice for demanding applications. The advantages of PU coatings include:

– Superior Flexibility: PU coatings retain the flexibility of silicone, ensuring that the keyboard maintains its original feel and performance.

– Enhanced Protection: This coating offers excellent resistance to UV light, chemicals, and abrasion, ensuring the keyboard remains functional and visually appealing over time.

– Customizable Texture: PU coatings can be engineered to create various textures, catering to different user preferences.

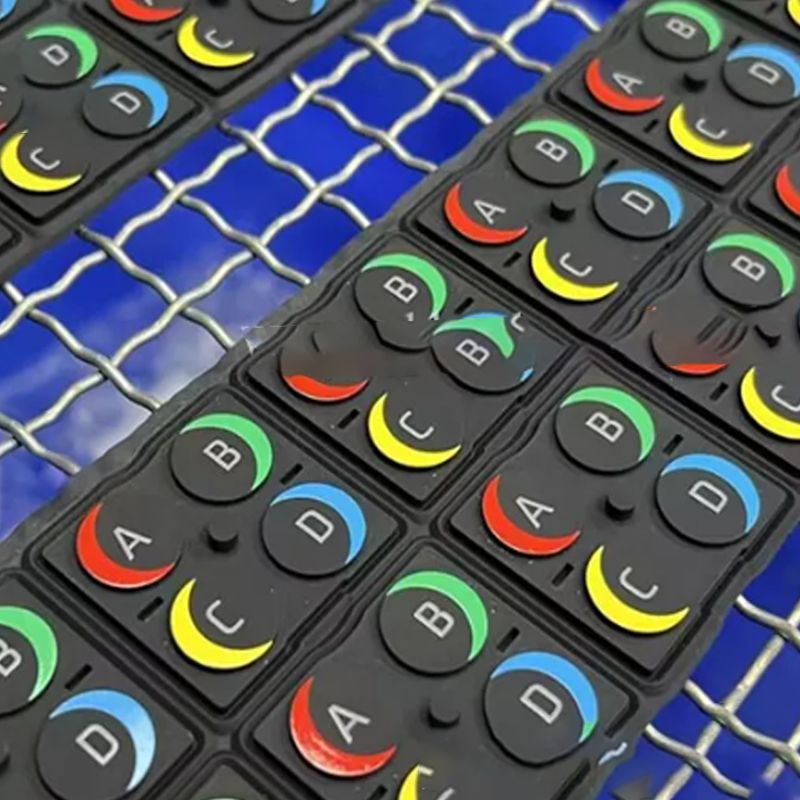

6. Silk Screen Printing

Silk screen printing is a widely used method for adding graphics, logos, and text to silicone keyboards. This technique involves creating a stencil and using it to apply ink to the keyboard surface. The benefits of silk screen printing include:

– Cost-Effectiveness: Silk screen printing is often more cost-effective for large production runs, making it a popular choice for manufacturers.

– Versatile Design Options: This method allows for a wide range of colors and designs, making it easy to customize keyboards for specific brands or purposes.

– Quick Turnaround: The silk screen printing process is relatively fast, allowing manufacturers to meet tight production deadlines.

7. Backlight Compatibility

Backlighting has become a significant trend in keyboard design, especially for gaming and professional use. Many silicone keyboards are designed to accommodate backlighting, enhancing usability in low-light conditions. The benefits of backlight compatibility include:

– Improved Visibility: Backlit keys enhance visibility, making it easier to type in dimly lit environments.

– Customization Options: Users can choose from various backlighting colors and effects, adding a personal touch to their keyboard setup.

– Increased Functionality: Backlit keyboards are often favored in gaming and professional settings, where visibility and aesthetics play crucial roles.

Conclusion

Choosing the right surface coating for silicone keyboards is essential for enhancing their functionality, aesthetics, and durability. Each coating option offers unique advantages that can be tailored to meet the specific needs of users, whether for gaming, professional, or personal use. As a leading silicone keyboard manufacturer, we understand the importance of these coatings in creating high-quality products that stand out in a competitive market.

By leveraging these surface coating options, manufacturers can not only improve the overall performance of silicone keyboards but also elevate their visual appeal, ensuring that they meet the diverse demands of today’s consumers. If you are considering customizing silicone keyboards for your business or personal use, it is crucial to explore these options to find the perfect match for your requirements. With the right surface coating, you can enhance the user experience, increase product lifespan, and create a standout keyboard that truly reflects your brand.

Silicone rubber keyboards play an essential role in numerous electronic devices, ranging from remote controls and household appliances to sophisticated industrial control panels. The tactile response and durability of these keyboards make them a favored choice across various applications. A crucial aspect of their design lies in selecting the appropriate contact mechanism, which is commonly either metal domes or conductive carbon inserts. Each option offers distinct advantages and disadvantages, influencing its suitability for different applications. In this blog, we will delve deeper into these differences, providing insights to help you make an informed decision for your next project.

Advantages of Metal Domes

Exceptional Tactile Feedback

Metal domes are renowned for their superior tactile feedback. When pressed, the snap action of the dome delivers a clear, crisp response that enhances the user experience. This feature is particularly desirable in applications where user interaction is critical, such as gaming devices or medical equipment, where feedback ensures that users know their input has been registered.

Durability and Longevity

One of the standout advantages of metal domes is their durability. Capable of withstanding millions of actuations, they maintain performance integrity over time, making them ideal for high-usage environments. This durability is particularly important in industrial applications where keyboards endure rigorous daily use, ensuring reliability and minimizing the need for frequent replacements.

Low Electrical Resistance

Metal domes typically exhibit lower electrical resistance compared to their carbon counterparts. This characteristic ensures a more reliable and consistent electrical connection, crucial for sensitive electronics where performance and responsiveness are paramount.

Customization Options

Metal domes can be engineered in various shapes, sizes, and actuation forces. This high degree of customization allows manufacturers to tailor keyboards to meet specific needs, whether it be for specialized applications or unique design requirements. This flexibility enables designers to integrate metal domes seamlessly into their products without compromising functionality.

Disadvantages of Metal Domes

Higher Production Costs

While metal domes offer numerous benefits, they come at a higher price point than conductive carbon inserts. This cost factor can significantly impact budget-sensitive projects, requiring careful consideration of the trade-offs involved.

Noise Factor

The distinctive ‘click’ sound produced by metal domes, while satisfying to many users, can be undesirable in quiet environments. For applications such as offices or libraries, where noise reduction is a priority, the audible feedback may necessitate a different approach.

Design Complexity

Integrating metal domes into a keyboard design can introduce complexity. Precise alignment and mounting are required to ensure optimal performance, which may demand additional engineering resources and increase production time.

Advantages of Conductive Carbon Inserts

Cost-Effectiveness

Conductive carbon inserts are typically more affordable than metal domes, making them an attractive choice for projects with tight budgets. This cost advantage can allow for the expansion of features or enhanced functionalities in the final product without exceeding budget constraints.

Silent Operation

One of the key benefits of carbon inserts is their silent operation. Unlike metal domes, these inserts do not produce a clicking sound when activated, making them ideal for noise-sensitive environments. This feature is particularly advantageous in settings such as hospitals, conference rooms, and residential spaces, where quiet operation is essential.

Integration Flexibility

Conductive carbon inserts are easily integrated into various keyboard designs, including those with unconventional shapes or sizes. Their adaptability allows designers to create unique products without compromising on performance, making them suitable for diverse applications.

Pressure Sensitivity

Another noteworthy advantage of carbon inserts is their ability to provide varying actuation forces. This range of sensitivity options can enhance user experience, allowing designers to cater to specific user preferences or functional requirements.

Disadvantages of Conductive Carbon Inserts

Limited Tactile Feedback

While conductive carbon inserts excel in certain areas, they generally offer less tactile response than metal domes. For applications where tactile feedback is essential, such as in gaming keyboards or specialized medical equipment, this limitation can be a significant drawback.

Potential for Wear and Tear

Carbon inserts may experience wear and tear more quickly than metal domes, particularly in high-use scenarios. This susceptibility can lead to reliability issues over time, necessitating replacements more frequently and potentially increasing long-term costs.

Higher Electrical Resistance

Conductive carbon inserts often exhibit higher electrical resistance compared to metal domes. While this may not be a concern for all applications, it could impact performance in sensitive electronic devices, leading to possible functionality issues in critical applications.

Balancing Performance and Cost

Ultimately, the choice between metal domes and conductive carbon inserts in silicone rubber keyboards is a balance between performance requirements and budget considerations. For applications demanding exceptional tactile feedback, durability, and low electrical resistance, metal domes typically emerge as the preferred option. Conversely, conductive carbon inserts offer a cost-effective solution for projects prioritizing silent operation and versatility.

When making your decision, it is essential to consider the specific needs of your project. Factors such as user experience, environmental conditions, and budget constraints should guide your choice. By thoroughly understanding the advantages and disadvantages of each option, designers and engineers can make informed decisions that best align with their application’s requirements.

Conclusion

In conclusion, both metal domes and conductive carbon inserts have their place in the landscape of silicone rubber keyboards. The key to successful product development lies in selecting the right mechanism that not only meets functional criteria but also enhances user satisfaction. By evaluating the unique characteristics of each option, you can ensure your design delivers the quality and performance your customers expect.

In aviation technology, even the smallest details matter, and avionics keyboards are no exception. While they might not be the first thing people think of in relation to flying, these keyboards are integral to maintaining the safety and operational efficiency of aircraft. Visibility is a key factor in their design, directly impacting performance in high-pressure environments. In this blog, we’ll dive into why clear, visible avionics keyboards are so vital and how they contribute to the broader aviation industry. Stay tuned for some insightful details!

What Are Avionics Keyboards?

Avionics keyboards are highly specialized input devices designed for use in the cockpit of an aircraft. Unlike standard computer keyboards, they are engineered to endure the extreme and variable conditions encountered during flight. This includes resistance to temperature fluctuations, turbulence, humidity, and even electromagnetic interference. Avionics keyboards serve as a critical interface between the pilot and a multitude of electronic systems, including navigation, communication, and monitoring systems.

These keyboards are typically compact and durable, with functionality that extends far beyond what most users would expect from a regular input device. Every key has a purpose, whether it’s for entering navigation data, adjusting communication frequencies, or interacting with critical monitoring systems that track the health of the aircraft. In short, avionics keyboards play a key role in the smooth operation of the aircraft, allowing pilots to input commands and make adjustments on the fly, ensuring that everything works as expected.

The Role of Avionics Keyboards in Flight Operations

Avionics keyboards are indispensable tools for pilots, acting as the bridge between human input and the electronic systems that keep an aircraft in the sky. These keyboards help manage complex tasks, such as adjusting autopilot settings, communicating with air traffic control, and monitoring engine performance.

Given their critical role, these keyboards must be intuitive, reliable, and easy to use—even in high-stress situations like bad weather or emergency scenarios. Any failure in their design or functionality could lead to mistakes, which in the aviation world, could result in dire consequences. This is where visibility becomes an absolutely vital element in their design.

The Critical Importance of Visibility in Avionics Keyboards

While there are many considerations when designing avionics keyboards—durability, functionality, and resilience—visibility stands out as one of the most important aspects. A well-designed avionics keyboard must ensure that each key is easily identifiable and usable under any lighting condition, from the brightest daylight to the darkest night.

Safety in the Skies

The first and foremost reason for prioritizing visibility in avionics keyboards is safety. In the aviation industry, mistakes can be catastrophic. Pilots often have to make quick decisions, and in doing so, they need to be able to easily locate and press the correct buttons without hesitation. Poor visibility could cause pilots to accidentally press the wrong key or struggle to find the right one, which could lead to errors in flight operation.

For example, during night flights or under low-light conditions, a poorly illuminated keyboard could hinder a pilot’s ability to quickly input critical data or make adjustments. In emergency situations, every second counts, and the visibility of the avionics keyboard can make the difference between a smooth recovery and a potentially hazardous situation.

Enhancing Efficiency and Productivity

In addition to safety, visibility is essential for the efficiency of flight operations. Pilots need to be able to quickly and accurately locate the necessary functions, particularly during takeoff, landing, or mid-flight adjustments. A well-illuminated, clearly marked keyboard can help reduce the time it takes to input commands, enhancing overall productivity in the cockpit.

Well-designed avionics keyboards with optimized visibility features enable pilots to work more efficiently, especially when managing multiple systems simultaneously. This efficiency is not only crucial during regular operations but becomes even more critical during high-pressure situations, such as in-flight malfunctions or extreme weather conditions.

Reducing Cognitive Load

A crucial aspect of pilot performance is managing cognitive load—the mental effort required to operate the aircraft and ensure its safe flight. Avionics keyboards that are intuitively designed with excellent visibility help reduce the cognitive burden on pilots. If a pilot can quickly recognize and press the correct keys without having to think too much about their placement or function, they can focus their attention on other critical tasks, such as flying the aircraft and managing navigation.

In this sense, visibility contributes to a pilot’s situational awareness, allowing them to maintain control over the flight without getting bogged down by unnecessary distractions. A well-lit, easily readable keyboard layout is essential for reducing this cognitive load, helping pilots stay focused on what matters most: flying safely.

Factors Influencing Visibility in Avionics Keyboards

There are several key factors that affect the visibility of avionics keyboards, and these must be carefully considered during the design and manufacturing process. Silkeypad specializes in crafting high-quality avionics keyboards that prioritize visibility without sacrificing durability or functionality.

Illumination Technology

One of the most important factors is the type of illumination technology used in the keyboard. Backlit keyboards are the industry standard for avionics because they provide consistent and adjustable lighting in various conditions. At Silkeypad, we use advanced backlighting systems that allow for brightness adjustments based on the cockpit’s current lighting environment. This ensures that pilots have clear visibility at all times, whether flying in broad daylight or during a night flight.

High-Quality Materials

The materials used to manufacture avionics keyboards are critical to maintaining visibility over time. High-quality, durable materials ensure that the markings on the keys remain visible, even after extensive use. At Silkeypad, we use premium materials that resist wear, UV radiation, and exposure to chemicals, ensuring that our keyboards maintain their readability and functionality over the long term.

Regular Maintenance and Cleaning

Even the best-designed keyboards require regular maintenance to ensure optimal performance. Dust, dirt, and fingerprints can obscure key markings, reducing visibility. Silkeypad recommends regular cleaning and maintenance protocols to keep the keyboards in top condition, preserving both their aesthetic appeal and functionality.

The Future of Avionics Keyboards

As aviation technology continues to advance, avionics keyboards are also evolving to meet the demands of modern aviation. At Silkeypad, we are continuously researching and developing new solutions to enhance the visibility and overall performance of our keyboards.

Enhanced Display Integration

One of the emerging trends in avionics keyboard design is the integration of dynamic displays and touch-sensitive interfaces. These innovations allow for customizable displays that can adapt to different phases of flight, improving visibility and providing pilots with more relevant, real-time information. Silkeypad is at the forefront of these innovations, offering cutting-edge solutions that incorporate advanced display technologies into avionics keyboards.

Haptic Feedback

Another exciting development is the integration of haptic feedback into avionics keyboards. Haptic feedback allows pilots to feel the keys, providing an extra layer of confirmation when a key is pressed. This technology can enhance safety by ensuring that pilots can confidently input commands, even in low-visibility conditions. At Silkeypad, we are exploring ways to integrate haptic feedback into our keyboards to further enhance their functionality and safety.

Conclusion

In the world of aviation, where precision and reliability are non-negotiable, visibility in avionics keyboards is essential. It directly impacts safety, efficiency, and the overall user experience in the cockpit. At Silkeypad, we understand the critical role visibility plays, and we are committed to producing high-quality avionics keyboards that meet the stringent demands of the aviation industry.

By leveraging the latest in illumination technology, durable materials, and cutting-edge design innovations, Silkeypad ensures that our avionics keyboards provide unmatched visibility and performance. As the aviation industry continues to evolve, we will remain dedicated to delivering solutions that prioritize safety and efficiency, making flying safer and more reliable for everyone.

Welcome to our blog, where we detail the process of creating a 6-button silicone rubber keypad. If you’re unfamiliar with silicone rubber keypads, we recommend checking out our previous blog post, which offers a comprehensive overview. This foundational knowledge will enhance your understanding as you proceed with this guide.

Creating your own 6-button silicone rubber keypad can be an exciting project, whether for a personal device or a prototype. Here’s a step-by-step guide to help you through the process.

Step 1: Prepare the Mold for the Keypad

Print the Mold

Start by printing the two halves of the keypad mold. You can use materials like ABS plastic, though PLA or other common 3D printing materials will work just as effectively.

Apply Mold Release

Once the mold parts are printed, spray them with a mold release agent. This makes it easier to remove the molded object later, much like greasing a baking sheet. A light coating is sufficient, and it’s best to do this in a well-ventilated area.

Step 2: Choose Your Silicone Rubber

Getting Ready

You won’t need much for this project. Using two large craft sticks, spoon equal volumes from containers A and B into a paper cup. Precision isn’t crucial, so don’t worry about measuring exactly.

Step 3: Mix the Silicone Rubber

Stir the mixture thoroughly until it reaches a uniform color, ensuring complete blending. The silicone rubber has a slow curing time, so take a moment to mix well.

Step 4: Pour the Silicone Rubber

Before You Pour

Identify how the top mold fits onto the bottom mold. There’s only one correct orientation, so make sure to note that before pouring.

Pour

Carefully pour the silicone rubber into the bottom mold and then place the top mold on. The consistency of the silicone is similar to honey, so expect some overflow as the molds press together.

Step 5: Prepare for Hardening

Clamping

With one edge of the assembled mold facing up, use a clamp or vice to hold it together gently. Spoon additional silicone rubber into any open slots at the top until the mold is full.

Curing

Allow the mold to cure undisturbed. While it will become somewhat firm after a couple of hours, letting it cure for the full six hours as recommended will yield the best results.

Step 6: Remove the Keypad from the Mold

Once cured, release the clamp and carefully pry off the top mold. Gently pull the keypad from the bottom mold.

Step 7: Print the Keypad Frame and Assemble

Print

Using a 3D printer, print the top and bottom plates from the attached STL files. For the best finish, print the top plate without a raft.

Assemble

Place the keypad onto the bottom plate, ensuring the posts fit into the corresponding holes. Then, add the top plate. You might need to enlarge the holes slightly to accommodate the buttons comfortably.

Why the Frame?

The frame is essential because it ensures that only the portion of the keypad supporting the button bends when pressed. This stability prevents unintended distortion in areas that should remain rigid.

Step 8: Hooking It Up

Conductive Rubber

Each button has a rectangular platform on the underside. To make the keypad functional, apply a layer of conductive rubber, 1-2 mm thick, to these platforms. Ensure the surface is flat for optimal contact with the circuit board.

Circuit Board

Beneath the keypad’s bottom plate, place a circuit board with contact points that the conductive rubber can bridge. A layout resembling interlaced fingers works well for this purpose.

Processor

When the conductive rubber is pressed down onto the contacts, it connects them, allowing a processor (like an Arduino or Raspberry Pi) to detect the button press.

Step 9: Further Exploration

Experiment with a Big Button

My initial silicone rubber keypad project involved creating a single large button. While there are aspects I improved in the 6-button design, the large button was straightforward and easy to work with. For scale, a quarter is included in the accompanying images.

With these steps, you can create your very own 6-button silicone rubber keypad. Whether for personal use or a larger project, this guide equips you with the knowledge to bring your ideas to life. Happy crafting!

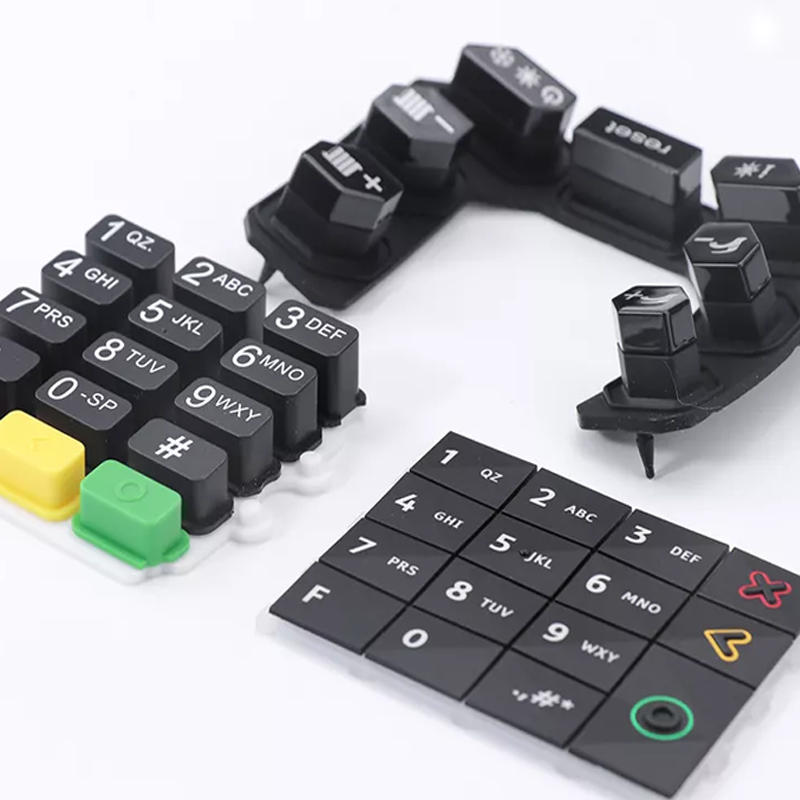

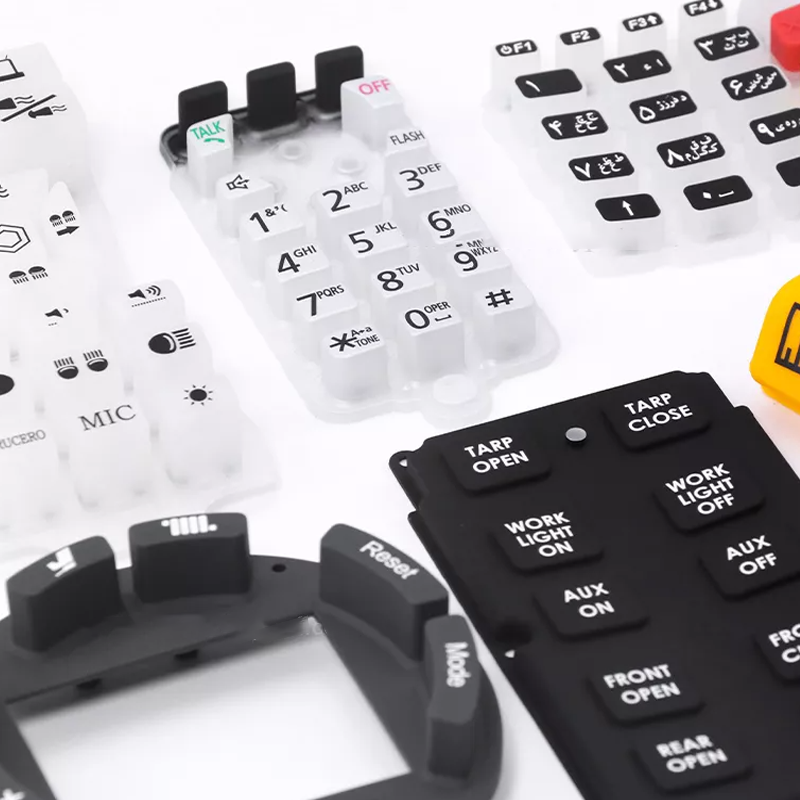

Silicone rubber and plastic keypads serve as essential input interfaces across multiple industries, including medical, automotive, industrial, and consumer electronics. Both materials offer distinct benefits and challenges, making it crucial to align your choice with the specific needs of your application.

In this professional comparison, we’ll explore the key differences between silicone and plastic keypads in terms of aesthetics, molding processes, tactile feedback, durability, adaptability, and cost.

Aesthetics

Silicone Keypads: Silicone keypads are known for their soft, rubber-like texture, offering a comfortable tactile experience. They can be molded into various shapes, sizes, and even complex 3D designs. Silicone keypads allow for custom layouts with advanced surface treatments like backlighting and laser etching for long-lasting, high-contrast markings. This makes them ideal for control panels and user interfaces in industrial, medical, and consumer electronics applications where durability is a priority.

Plastic Keypads: Plastic keypads, on the other hand, offer a firmer feel with a more defined tactile response, often preferred in consumer electronics. These keypads support a wide range of customization options, including brand-specific colors and surface textures. In-mold decorating and laser etching for illuminated key labels enhance their suitability for devices requiring backlit keys and high aesthetic standards.

Molding Processes

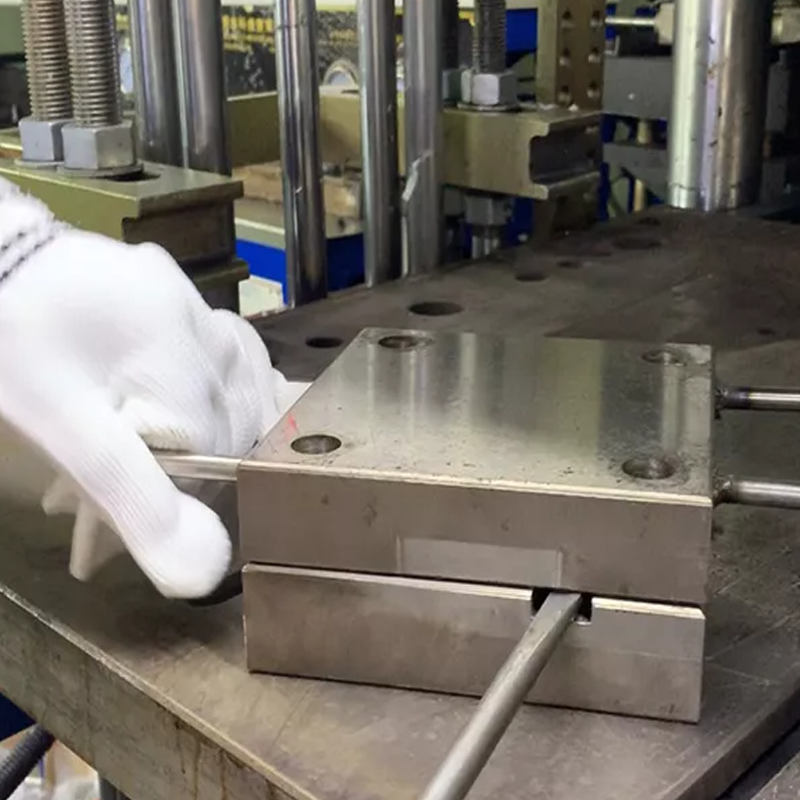

Silicone Keypads: The manufacturing of silicone keypads typically involves compression molding. Silicone is mixed with curing agents and injected into molds that are subjected to heat and pressure, where the material cures and takes the shape of the mold. The design and tactile properties are determined by the mold cavities and key placement, offering flexibility for custom designs.

Plastic Keypads: Plastic keypads are produced through an injection molding process, where molten plastic is injected into a mold under high pressure. The process is highly efficient for mass production, offering tight tolerances and consistent quality. Plastic keypads are ideal for designs requiring more rigid structures and complex surface finishes.

Tactile Feedback

Silicone Keypads: Silicone keypads rely on a silicone rubber web for tactile feedback. When a key is pressed, the web collapses, pushing a conductive pill into contact with the circuit below. This provides a responsive, yet quieter feedback experience, often preferred in medical or industrial applications where minimal noise is a priority.

Plastic Keypads: Plastic keypads use a dome switch mechanism for tactile feedback. Each key features a small dome that compresses when pressed, producing both a noticeable tactile sensation and a satisfying audible click. This type of feedback is commonly found in consumer devices where precise input is critical.

Durability and Environmental Resistance

Silicone Keypads: Known for their ruggedness, silicone keypads are highly resistant to extreme temperatures, chemicals, and UV exposure, making them ideal for use in harsh environments. They are especially suitable for applications in industries like automotive, industrial equipment, and medical devices, where exposure to moisture, dust, and chemicals is common.

Plastic Keypads: The durability of plastic keypads largely depends on the type of resin used. While certain plastics, such as polycarbonate or ABS, provide reasonable impact resistance, they may not withstand the harsh conditions that silicone can endure. Over time, plastic keypads may show signs of wear, particularly in high-traffic environments.

Adaptability

Silicone Keypads: Silicone rubber keypads are highly adaptable to intricate shapes and ergonomic designs. They are ideal for custom layouts, allowing manufacturers to create unique configurations suited to specific applications. Their quieter operation also makes them well-suited for environments where noise reduction is essential, such as in healthcare settings.

Plastic Keypads: While plastic keypads offer a range of color and surface finish options, their design flexibility is more limited compared to silicone keypads. However, they are still an excellent choice for applications where rigidity and precise input are required.

Cost Considerations

Silicone Keypads: Silicone keypads generally have a higher upfront cost due to the materials and molding process involved. However, their durability and longer lifespan can result in significant cost savings over time, as they require less frequent replacement and maintenance, especially in demanding environments.

Plastic Keypads: Plastic keypads are more cost-effective in terms of manufacturing, as the materials and production processes are generally less expensive. While initial costs may be lower, it’s important to consider potential long-term expenses associated with replacement and maintenance, particularly in harsh environments.

Conclusion

Selecting between silicone rubber and plastic keypads depends on your application’s specific needs. Silicone keypads excel in durability, flexibility, and resilience, making them ideal for rugged or specialized applications. In contrast, plastic keypads offer a more cost-effective solution with high aesthetic and tactile customization options, making them a popular choice for consumer electronics.

At Silkeypad, we specialize in providing custom silicone rubber and plastic keypads for a variety of industries. Whether you’re looking for long-lasting, rugged silicone solutions or sleek, cost-effective plastic designs, we have the expertise to help you choose the best option for your project. Contact us today for more information or to request a custom quote tailored to your requirements!

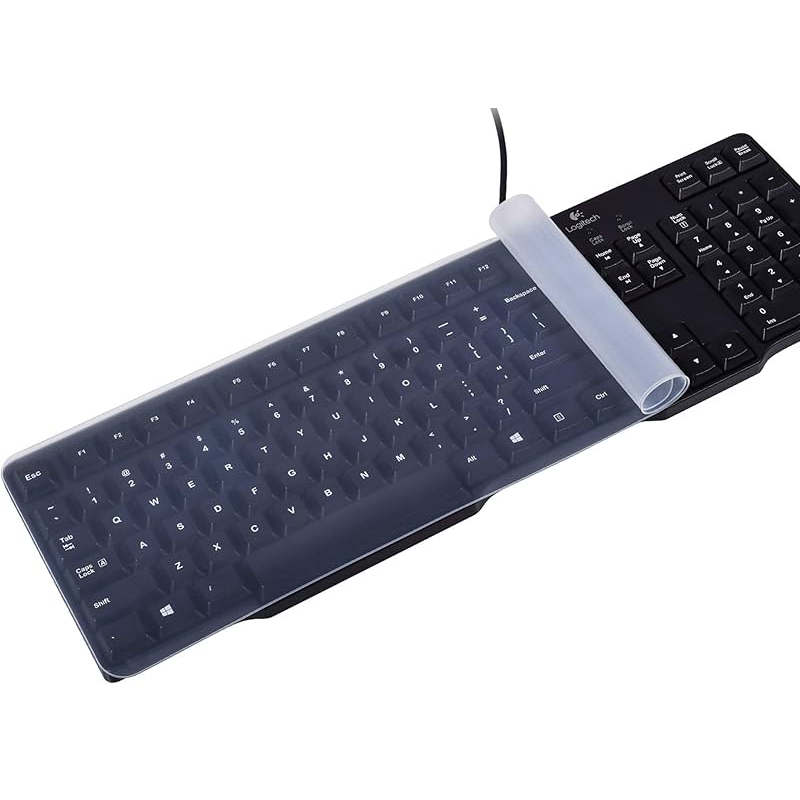

Hello,everyone,as we all know,keyboards are more than just input devices; they are essential tools that facilitate our interactions with technology. As users increasingly seek to blend functionality with personal style, custom silicone keyboard covers have emerged as a popular solution. These covers offer robust protection while allowing for a high degree of customization. As a leading manufacturer specializing in silicone keyboard covers, we understand the nuances of this versatile accessory and its significance in enhancing both the aesthetics and longevity of your keyboard.

The Role of Custom Silicone Keyboard Covers

Custom silicone keyboard covers serve several critical functions:

1. Protection: One of the primary benefits of silicone keyboard covers is their ability to shield keyboards from damage. Daily use exposes keyboards to dust, spills, and oils from fingers, which can degrade the quality of the keys over time. Silicone covers act as a barrier, preventing these contaminants from making direct contact with the keyboard. This protective layer is especially crucial in environments where keyboards are prone to spills or heavy use.
2. Personalization: Beyond protection, silicone keyboard covers offer a canvas for personal expression. Available in a range of colors, patterns, and designs, these covers enable users to customize their keyboards to reflect their individual style. Whether you’re looking for a sleek, minimalistic design or a vibrant, artistic touch, custom silicone covers can transform a standard keyboard into a unique accessory that complements your workspace.
3. Comfort: Silicone is known for its soft and flexible nature, which can enhance typing comfort. The material provides a cushioned surface, reducing typing fatigue and improving overall typing experience. This added comfort is particularly beneficial for those who spend long hours at their keyboards.

Benefits of Custom Silicone Keyboard Covers

1. Tailored Fit: Custom silicone keyboard covers are designed to fit specific keyboard models precisely. This ensures that the cover aligns perfectly with each key, offering a snug fit that prevents slippage and maintains the cover’s protective efficacy. A custom fit also ensures that key labels and backlighting remain visible, preserving the keyboard’s functionality and aesthetics.
2. Durability: Silicone is renowned for its durability. It is resistant to wear and tear, making it an excellent choice for protecting keyboards from everyday use. Additionally, silicone covers are waterproof and easy to clean, further extending their lifespan and maintaining a hygienic typing environment.
3. Easy Maintenance: Silicone covers are straightforward to clean. They can be wiped down with a damp cloth or cleaned with mild soap and water, making it easy to remove any accumulated dust or grime. This ease of maintenance contributes to a cleaner and more pleasant typing experience.
4. Customization Options: The ability to customize silicone keyboard covers is one of their most appealing features. From selecting specific colors to incorporating unique patterns and logos, the customization process allows for a high degree of personalization. This means you can design a cover that aligns perfectly with your brand, aesthetic preferences, or functional requirements.

The Manufacturing Process

Creating a custom silicone keyboard cover involves several key steps:

1. Design and Specifications: The process begins with defining the design and specifications of the keyboard cover. This includes selecting the material, color, and any design elements such as logos or patterns. Accurate measurements of the keyboard are essential to ensure a perfect fit.
2. Molding and Production: Once the design is finalized, the cover is produced using precision molding techniques. Silicone rubber is poured into molds that are specifically shaped to match the keyboard’s layout. This process ensures that each key is covered precisely, maintaining both the protective and aesthetic qualities of the cover.
3. Quality Control: Quality control is a crucial aspect of the manufacturing process. Each silicone keyboard cover undergoes rigorous inspection to ensure it meets the highest standards of durability and functionality. This includes checking for any defects in the material or discrepancies in the design.
4. Delivery and Support: After passing quality control, the custom keyboard covers are packaged and shipped. Our team provides ongoing support to address any concerns or issues that may arise, ensuring that customers receive a product that meets their expectations.

Applications and Use Cases

1. Corporate Branding: Custom silicone keyboard covers are an excellent tool for corporate branding. Companies can incorporate their logos and colors into the covers, creating a cohesive and professional appearance for employees’ workstations. These covers can also be used as promotional items or giveaways.
2. Educational Environments: In educational settings, custom keyboard covers can be tailored to specific needs, such as including educational symbols or color-coded keys for different subjects. They help protect the keyboards in high-use environments like schools and libraries.
3. Gaming: Gamers often seek custom silicone keyboard covers to enhance their gaming setup. Covers with unique designs or features like backlighting compatibility can provide both protection and style, contributing to an immersive gaming experience.
4. Personal Use: For individual users, custom silicone keyboard covers offer an opportunity to personalize their workspace. Whether for a home office or a personal computer, these covers can reflect personal tastes and provide a touch of creativity.

Custom silicone keyboard covers represent a blend of protection, personalization, and practicality. As a dedicated manufacturer of silicone keyboard covers, we are committed to delivering products that meet the highest standards of quality and customization. By offering tailored solutions that fit specific needs and preferences, we ensure that each keyboard cover not only protects but also enhances the user’s experience. Explore our range of custom silicone keyboard covers and discover how you can elevate your keyboard’s functionality and style. For more information or to place a custom order, don’t hesitate to contact us.

Silicone keypads are widely utilized in automotive applications, including center console controls, window lift buttons, and navigation systems. While the adoption of touch screens in vehicles has grown significantly, they are not always the optimal solution. Touch screens can be costly to replace if damaged and are prone to smudging, which can impair visibility. In contrast, physical silicone keys offer tactile feedback, allowing drivers to easily recognize and operate controls without diverting attention from the road. At Silkeypad, we specialize in designing durable and reliable silicone keypads that enhance user safety and functionality in automotive environments.

In this blog, we will explore how automobile silicone buttons function and their role in enhancing vehicle interfaces. Automotive silicone buttons are crafted from high-quality silicone rubber, known for its elasticity, resilience, and durability. These buttons are engineered with key webbing that provides tactile feedback, ensuring a responsive and satisfying user experience. They also feature air vents to maintain balance under pressure, positioning pins for precise alignment, and multiple openings for LED integration. This thoughtful design ensures reliable performance, even under constant use, making silicone buttons an essential component in modern automotive controls.

Automotive silicone buttons are manufactured using compression molding, ensuring both precision and durability. Each button is designed with angled key webbing surrounding the switch center. When the switch is pressed, the webbing uniformly deforms, delivering a tactile response that enhances user interaction. Upon releasing the pressure, the webbing returns to its neutral position, providing positive feedback and maintaining consistent performance. This innovative design not only improves usability but also ensures longevity and reliability in demanding automotive applications.

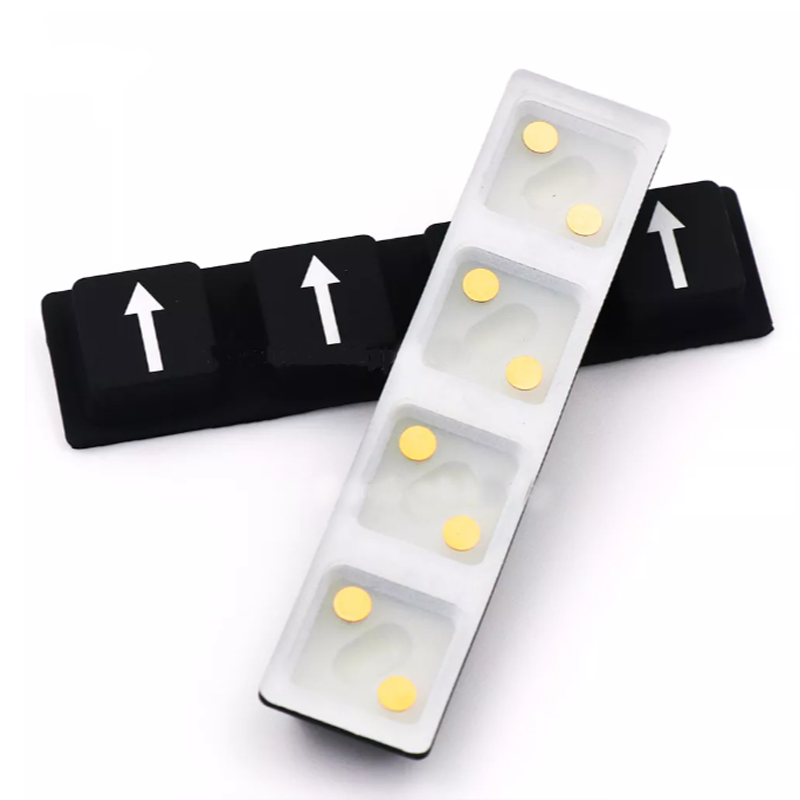

To create an effective electronic switch, a carbon or gold pill is placed at the base of the switch center, making contact with the printed circuit board when the webbing is compressed. In automotive silicone buttons, three common conductive options are used: carbon pill, gold pill, and nickel pill. For optimal responsiveness and positive feedback, these materials must have low resistance. Gold and nickel pills are often preferred for their superior sensitivity, with gold pills offering resistance as low as 1 ohm and nickel pills around 3 ohms.

The travel distance and actuation force of automotive silicone buttons are specifically designed to prevent accidental activation, with actuation forces typically ranging between 300-400g. This ensures both reliability and user control during operation.

As consumers continue to prioritize durability and reliability in their vehicles, silicone has become an ideal material for automotive manufacturers. The key benefits of automotive silicone buttons include:

1. Superior Heat Resistance: Silicone can withstand high temperatures without compromising performance, making it ideal for automotive interiors, where temperatures can soar. This ensures that silicone buttons continue to function seamlessly even in extreme heat.
2. Exceptional Weather Durability: Silicone’s resistance to environmental factors such as UV exposure, humidity, and temperature fluctuations ensures that it won’t age, discolor, or deform over time. This long-lasting stability makes it perfect for enduring various driving conditions.
3. Excellent Resilience: Silicone offers high elasticity, allowing buttons to recover their shape immediately after being pressed. This not only provides tactile feedback but also enhances the driver’s experience by ensuring smooth and responsive operation.

In conclusion, silicone buttons play a pivotal role in enhancing both the functionality and user experience of today’s automobiles. Their remarkable heat resistance, weather durability, and superior tactile feedback provide a perfect solution for the demanding conditions within vehicle interiors. Whether it’s enduring extreme temperatures or delivering consistent performance over time, silicone buttons are an invaluable asset for automotive manufacturers seeking longevity and reliability in their components.

At Silkeypad, we pride ourselves on producing high-quality silicone keypads that meet the toughest industry standards. Our commitment to innovation and precision ensures that our products not only meet but exceed customer expectations, delivering seamless performance and durability in every application.

Stay tuned for more insights and advancements in silicone technology. Until next time, see you soon!
